SBC-2 Pictures

Here are the board pictures:

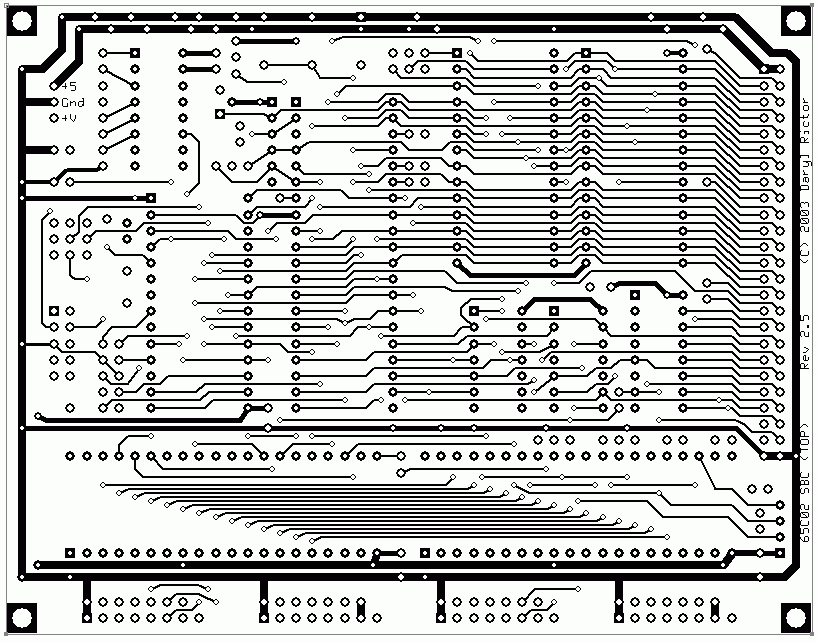

The top copper layer

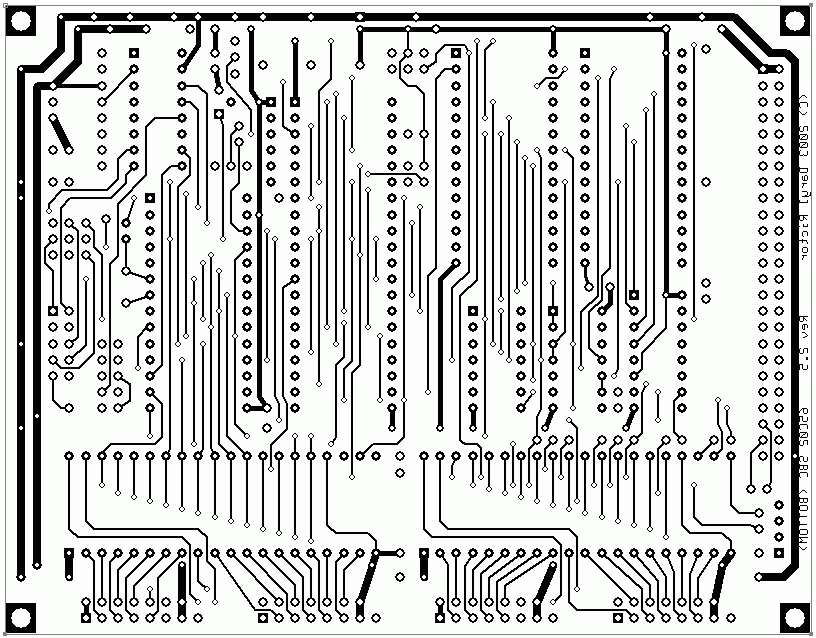

The bottom copper layer

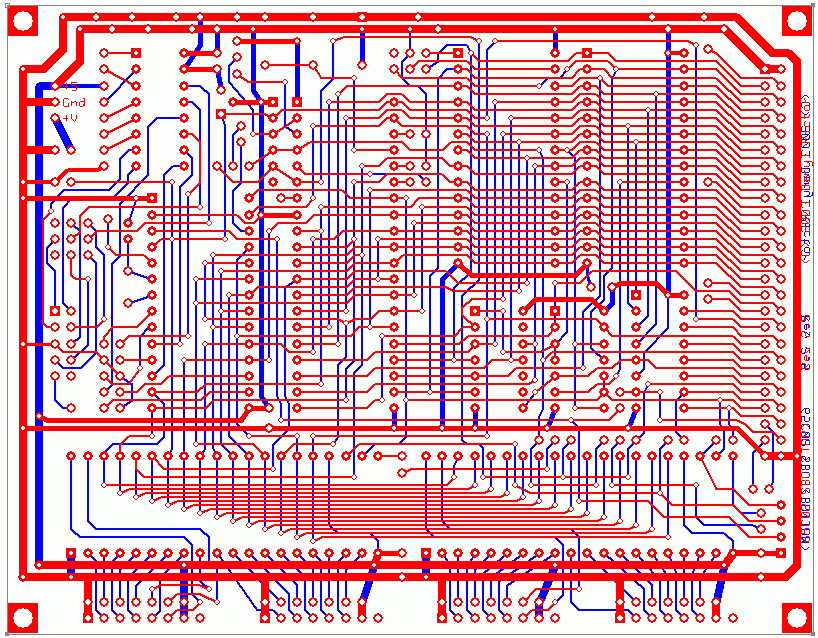

Both layers superimposed

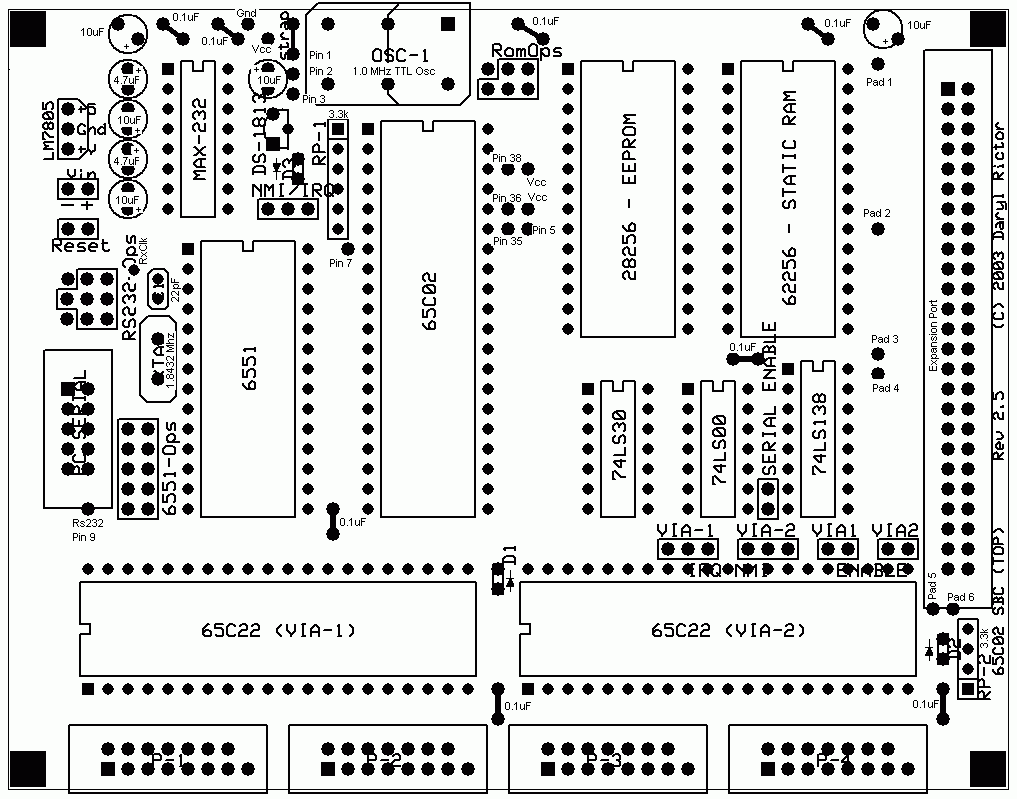

The parts placement diagram

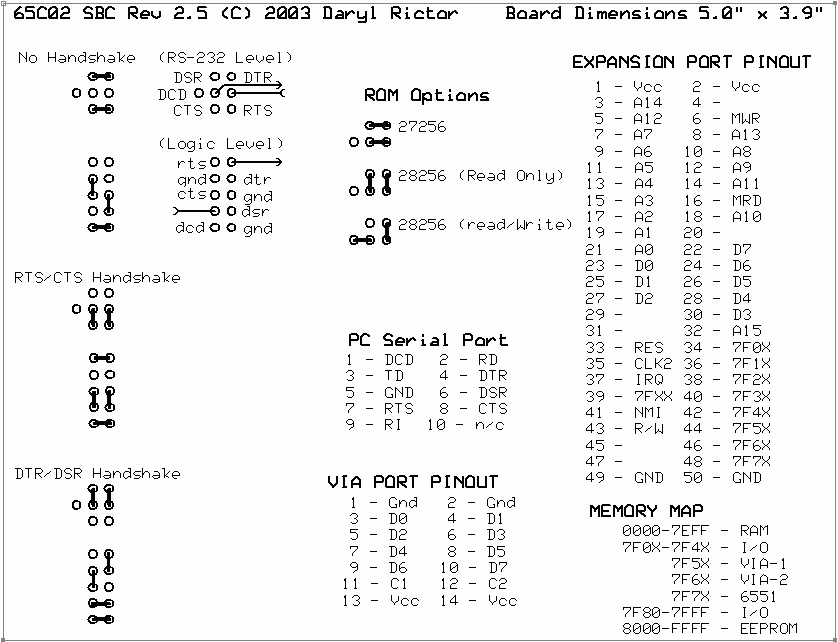

Board strapping options
