SBC-2 Schematics

The schematic is broken into 6 sections:

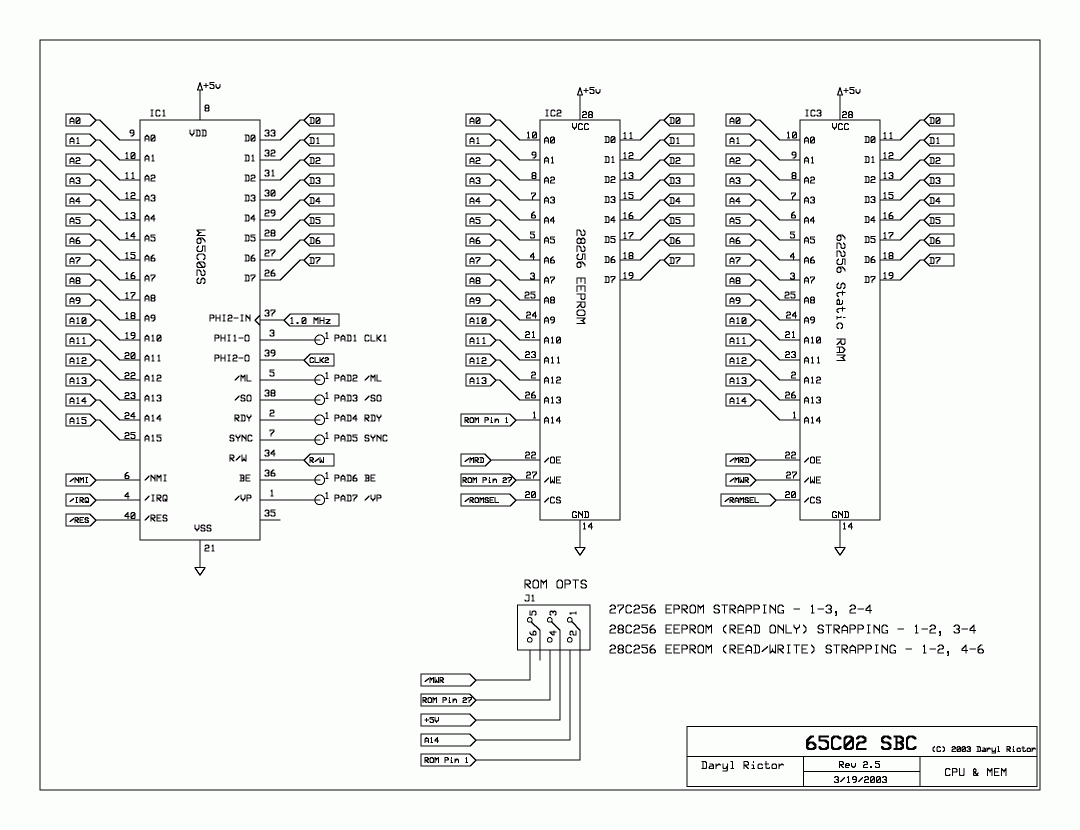

The CPU & Memory section

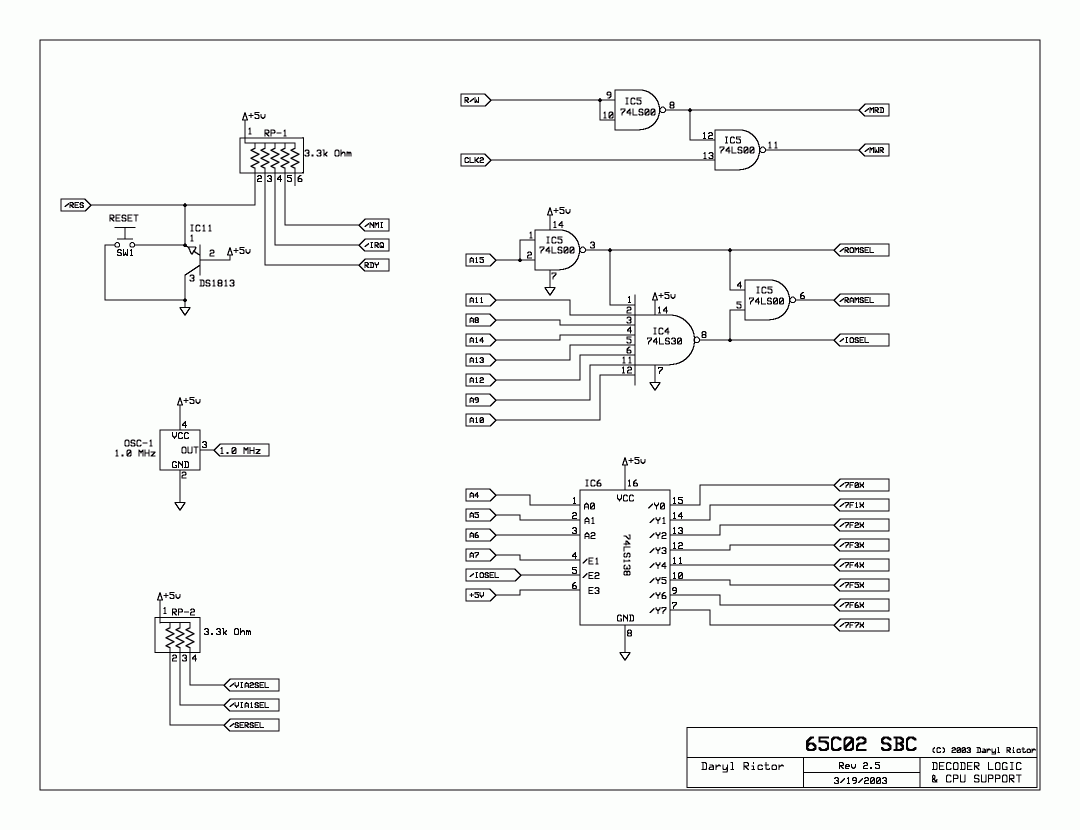

The Decoder Logic and Support Section


The Serial Port Section

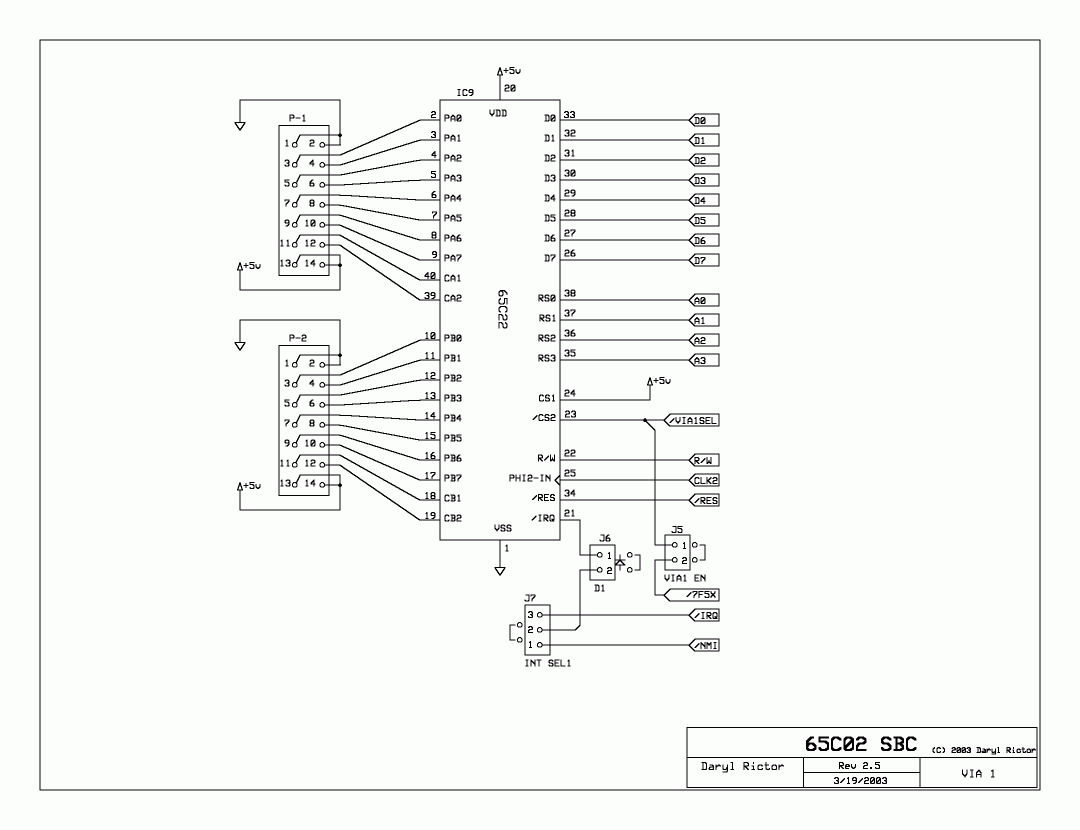

The 65C22 #1 Port Section


The 65C22 #2 Port Section

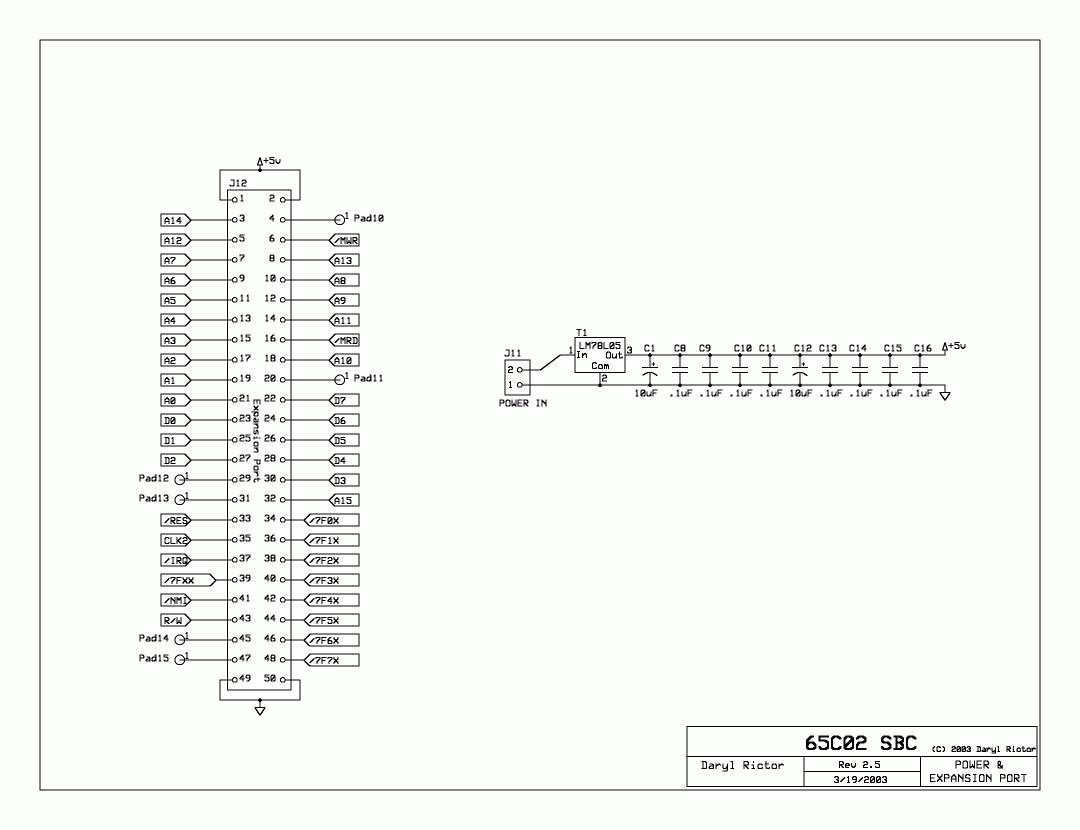

The Power and Expansion Port Section
