SBC-3 Schematics

The SBC-3 Schematic is broken into two sheets:

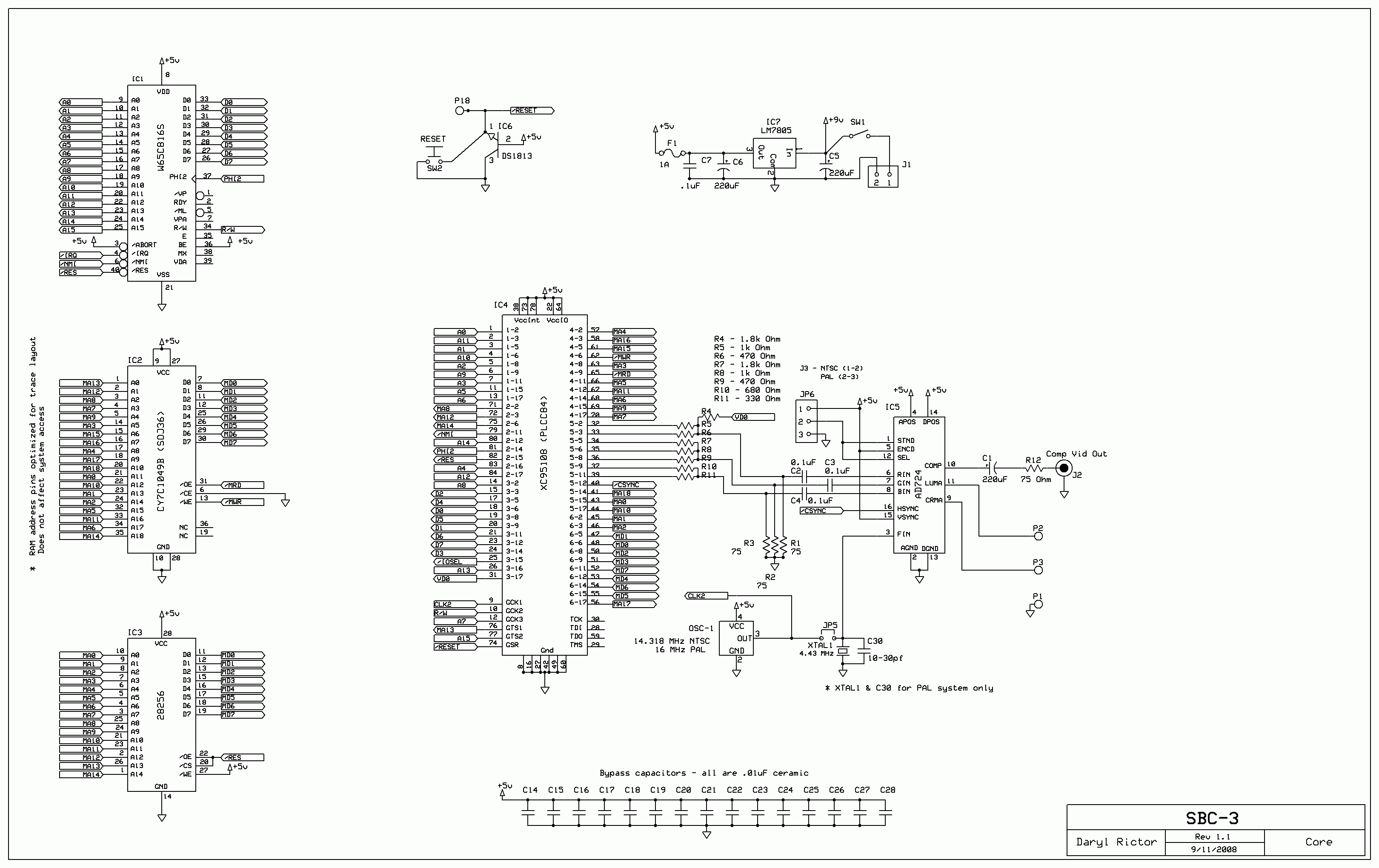

This is the Schematic of the Core:

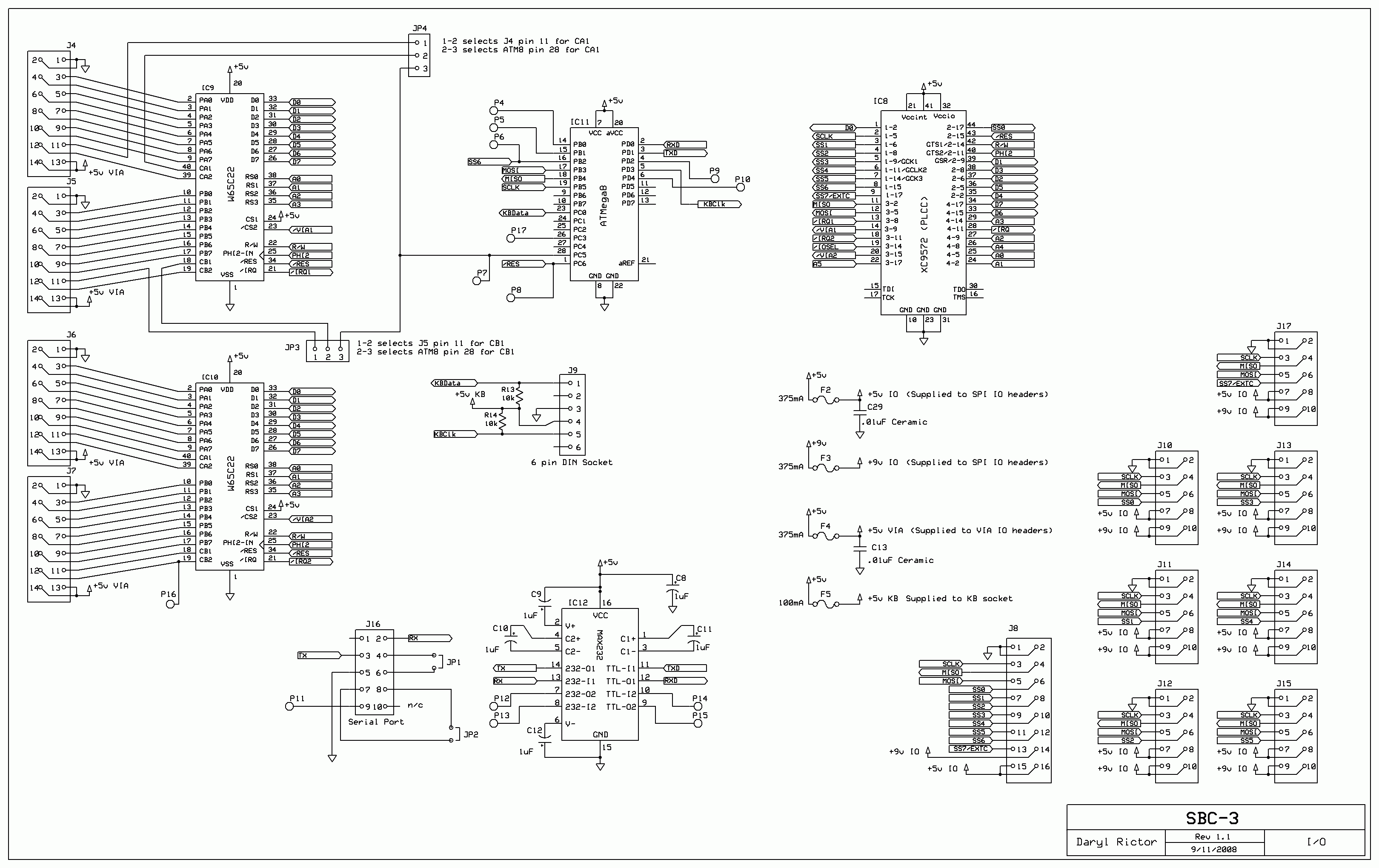

This is the Schematic of the I/O:
