SBC-4 IO1 Daughter Board

This I/O board will have a 65C22 providing two 8-bit I/O ports. I have included an I2C Interface that uses two pins on Port B. It will also have my 65SPI chip providing an SPI interface using the 65SIB format. I have also included an SBC-3 compatible SPI interface that will allow one SBC-3 device to be connected to the SS6 input.

Here's a picture of the conceptual layout:

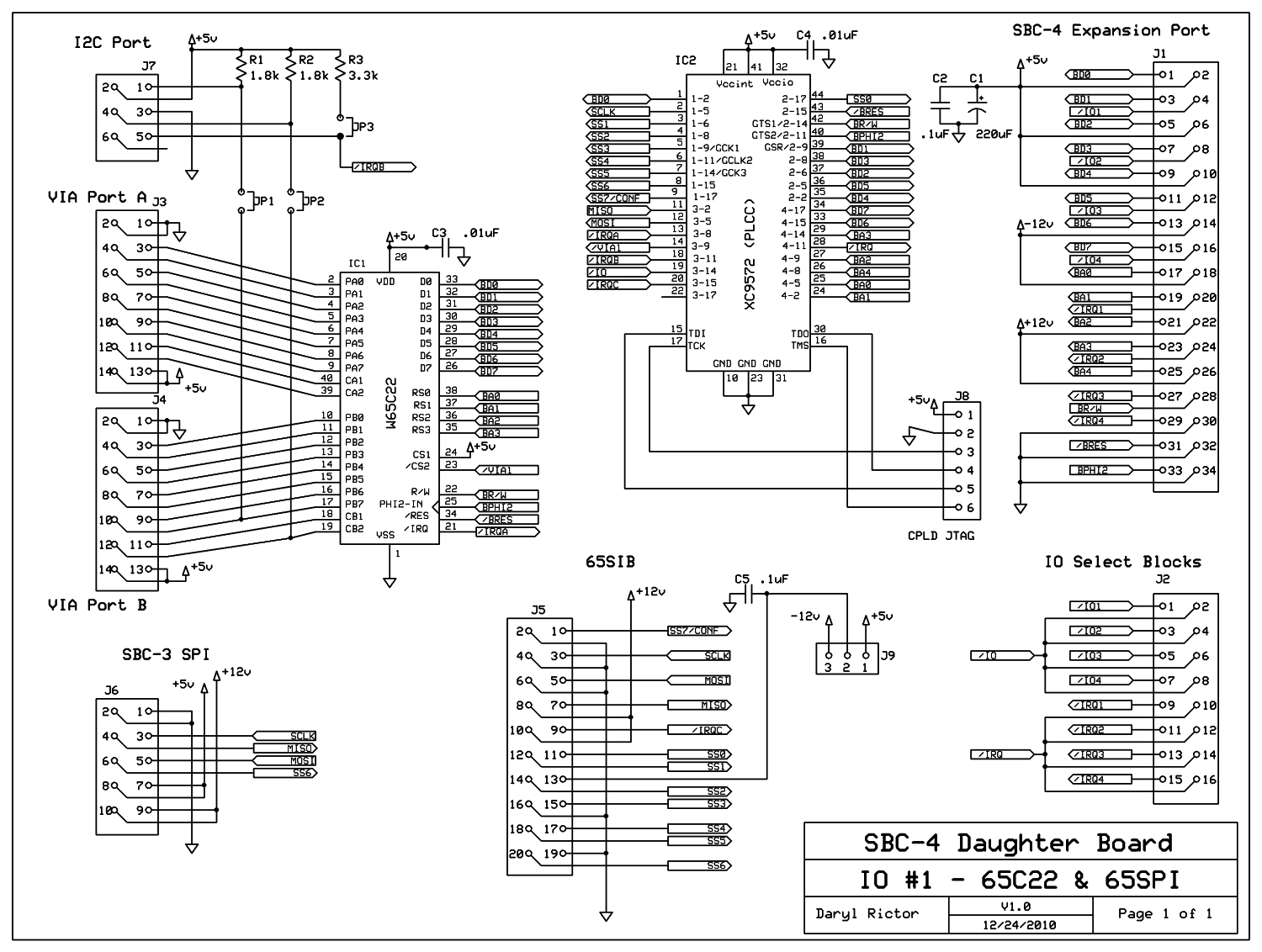

This is the schematic:

I'll add more once I've finished the design.
